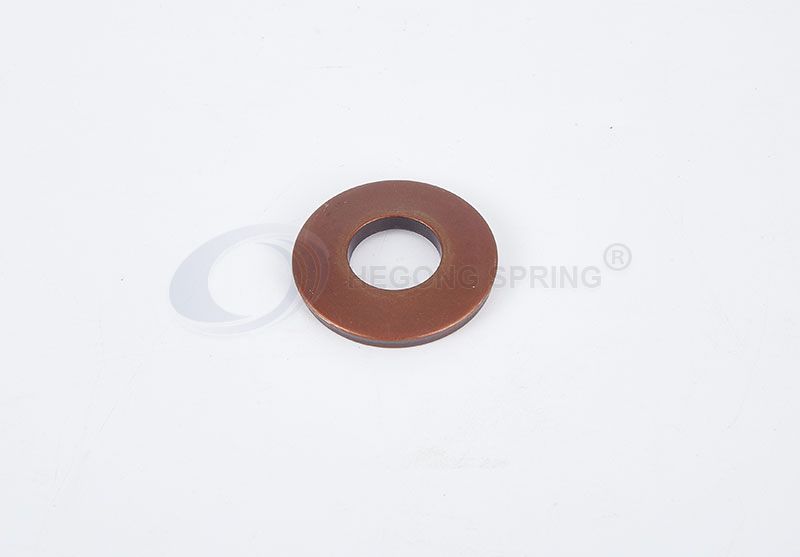

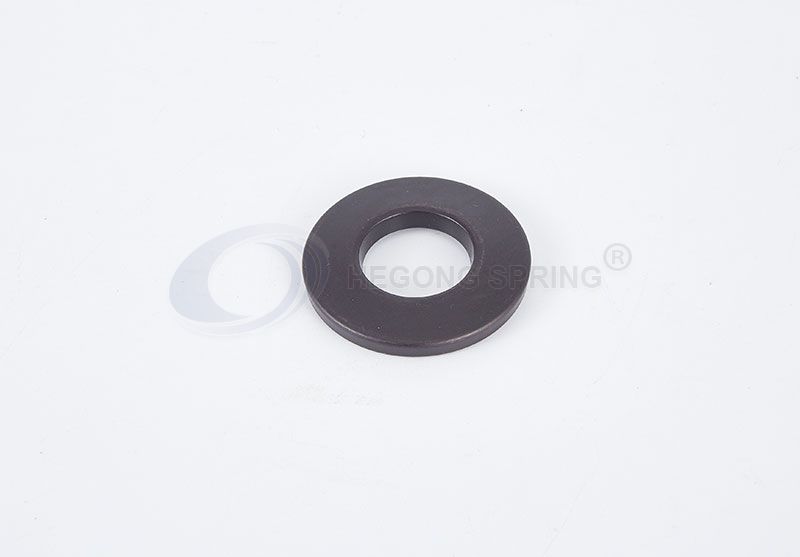

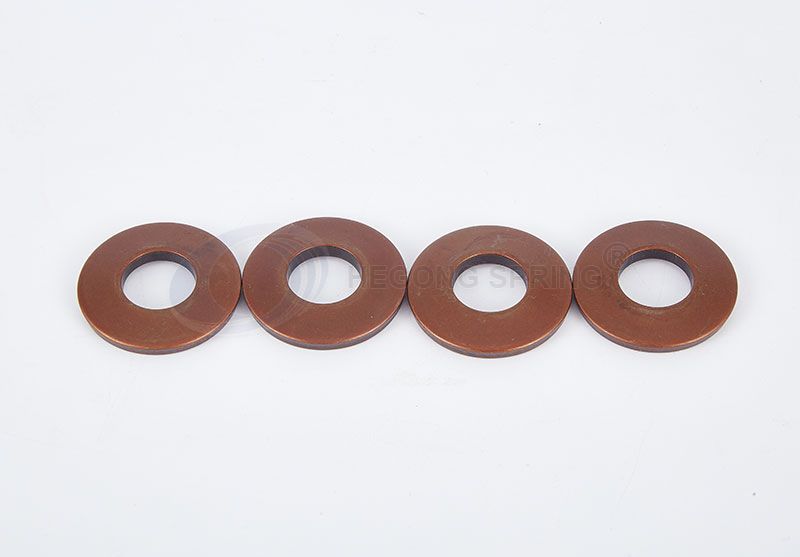

Belleville Washer DIN6796

Belleville washers DIN6796 wholesale, also known as conical spring washers, heavy duty bolting washers, heavy duty safety washers, spring washers and belleville springs, etc.. Belleville Washers DIN6796 are widely applied in industries such as national defense, metallurgy, engineering, electric power, machine tools, and etc.. The belleville washers DIN6796 from HEGONG SPRING have good elasticity performance and meet the clamping force requirements and guarantees the reliability of the connection pairs. We provide various sizes of belleville washers wholesale and warmly welcome customizztion belleville washers. If you're looking for Belleville washers DIN6796 wholesale for your projects, please feel free to contact us!

Description

Belleville Washers DIN6796 wholesale, also known as conical spring washers, heavy duty bolting washers, heavy duty safety washers, spring washers and belleville springs, etc.. Belleville Washers are widely applied in industries such as national defense, metallurgy, engineering, electric power, machine tools, and etc..



Belleville Washer DIN6796 wholesale is a specialty version of belleville spring washer used to improve security of bolt connection, manufactured as per DIN6796 standard. It is applicable to the static bolting applications in the medium and high strength range.



Belleville Washers DIN6796 wholesale help to balance the stress relaxation in bolt/ nut assembly, and have the following functions for loss of preload force, thermal expansion and contraction, and compression of seals caused by wear, deformation and creep of wearing parts:


a. Have enough elasticity to improve the whole elasticity of the connecting pair;

b. The inherent elastic force can compensate for the loss of preload force, meet the clamping force requirements, and ensure the reliability of the connection pair;


Note: Relative movement will occur between the bolt and nut, if the lateral force overcomes the friction between the clamped elements. Generally, the belleville washers cannot prevent the connection pair from loosening due to the lateral movement. Therefore, it is necessary to detect whether the belleville washers maintains the clamping force.

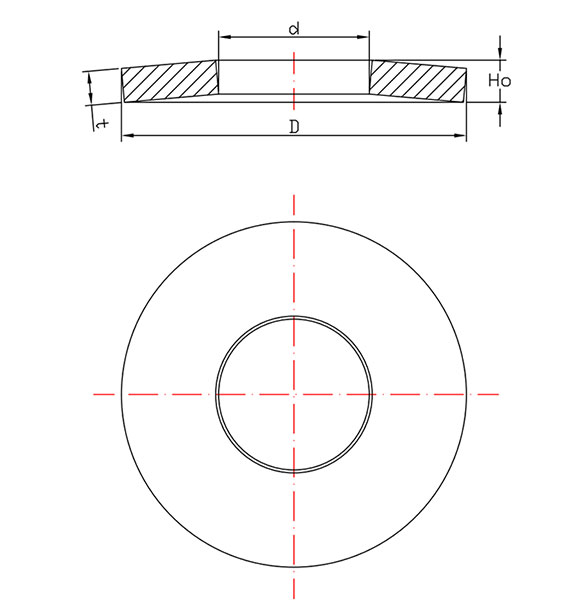

Dimensions and Designation

Belleville Washer DIN6796 Wholesale

Material:

Learn more about Materials

60Si2Mn / DIN1.0909 50CrV4 / DIN1.8159

Surface condition and Corrosion protection:

Learn more details about Corrosion Protection

Polish

Phosphating and oil

Mechanical Zinc Plating

Chemical Nickel Plating

Docromet / Geomet Coating

Electrophoresis

Specification:

HEGONG
Part No.
Bolt SizeD
(mm)
d
(mm)
t
(mm)
H0max
(mm)
H0min
(mm)
Load
(N)
Min Residual
 Load(N)
Weight
(kg/1000pcs)
BW6796-M2M252.20.40.60.5******0.05
BW6796-M2.5M2.562.70.50.720.61******0.09
BW6796-M3M373.20.60.850.72******0.14
BW6796-M3.5M3.583.70.81.060.92******0.25
BW6796-M4M494.311.31.12405014000.39
BW6796-M5M5115.31.21.551.35670023000.69
BW6796-M6M6146.41.521.7940042001.43
BW6796-M7M7177.41.752.321370062002.53
BW6796-M8M8188.422.62.241720077003.12
BW6796-M10M102310.52.53.22.827500124006.45
BW6796-M12M12291333.953.43400001800012.42
BW6796-M14M1435153.54.654.04550002500021.57
BW6796-M16M16391745.254.58750003400030.37
BW6796-M18M1842194.55.85.08950005700038.91
BW6796-M20M20452156.45.61220007300048.81
BW6796-M22M2249235.57.056.151520009100063.45
BW6796-M24M24562567.756.7717500012200092.84
BW6796-M27M2760286.58.357.3230000161000112.79
BW6796-M30M30703179.28280000196000169.91


Welcome to customize the special belleville washers, Please contact our sales engineers.
